High Pressure Inflators

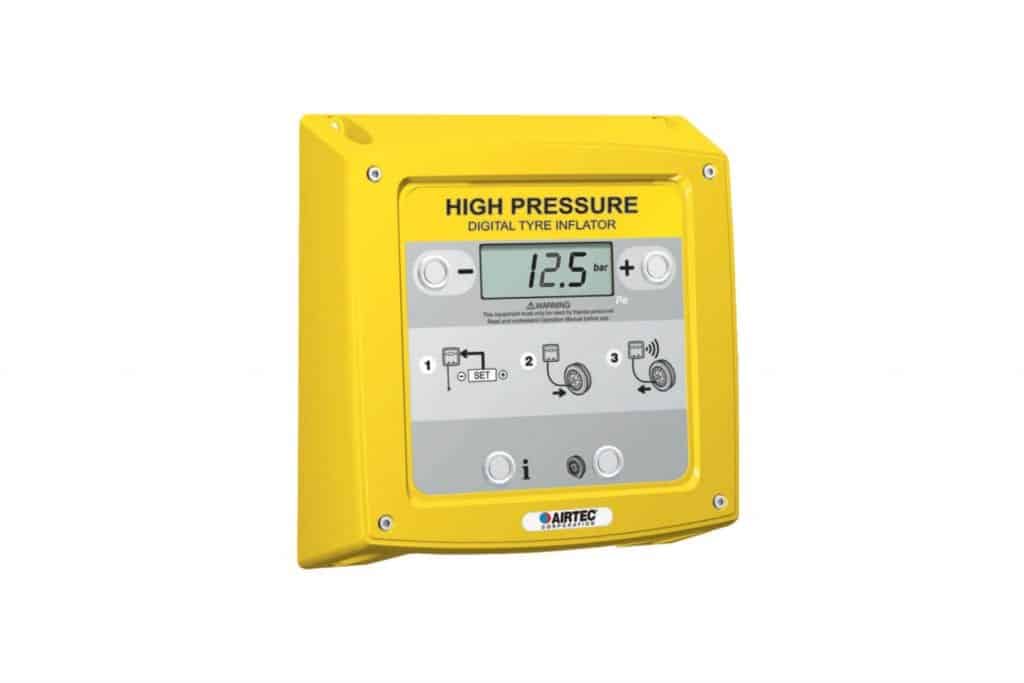

The XHB is an enhanced version of XDB for customers looking for a higher inflation pressure of maximum 12.5 bar / 182 psi. The XHB High Pressure Digital Tyre Inflator incorporates a high flow ½” valve capable of delivering in excess of 4,000 litres/min (141 cfm) at a maximum of 12.5 bar / 182 psi pressure. The heavy duty, weatherproof and vandal resistant enclosure makes it ideal choice for any indoor or outdoor application. Used with a 4-way manifold kit, XHB is able to inflate multiple tyres simultaneously.
- High flow and high pressure inflation up to 12.5 bar / 182 psi
- Rugged and durable IP66 rated diecast aluminium enclosure
- Suitable for use with standard or large bore valves and core extraction tools
Technical Specifications
| Construction | Diecast aluminium wall enclosure (IP66) |
| Dimension | 269 W x 285 H x 106 D mm |
| Power requirements | 220V-240VAC (optional 12VDC or 100~120VAC) |
| Units of measurement | psi / kPa / bar / kg/cm² |
| Operating range | 5-182 psi / 35-1250 kPa / 0.3-12.5 bar / 0.4-12.7 kg/cm² |
| Accuracy | +/- 0.5% FS |
XHB2
High Pressure Inflator (18.0 bar)
Featuring our new XHB2 Automatic Tyre Inflator with a maximum inflation capacity of up to 18.0 bar / 260 psi, this unit is specifically designed to cater to high-pressure applications, making it an ideal choice for heavy-duty vehicles, trucks, trailers, and other specialised vehicles requiring substantial tyre pressure.
The XHB2 incorporates a new high-flow ½” valve capable of delivering in excess of 4,000 liters/min (141 cfm) of air at a maximum pressure of 18.0 bar / 260 psi. This ensures efficient and rapid inflation, reducing downtime and keeping vehicles on the move.
Designed to withstand demanding conditions, this high-pressure tyre inflator boasts a sturdy construction. It is built with high-quality materials and components to ensure durability and longevity, even in harsh environments. The inflator can withstand high pressures without compromising its performance or safety, providing peace of mind to users.
- High-flow, accurate digital inflation up to 18.0 bar / 260 psi
- Rugged and durable IP66 rated diecast aluminium enclosure
Technical Specifications
| Construction | Diecast aluminium wall enclosure (IP66) |
| Dimension | 269 W x 285 H x 106 D mm |
| Power requirements | 220V-240VAC (optional 12VDC or 100~120VAC) |
| Units of measurement | psi / kPa / bar / kg/cm² |
| Operating range | 5-260 psi / 35-1800 kPa / 0.35-18.0 bar / 0.35-18.3 kg/cm² |
| Accuracy | +/- 0.5% FS |
