Mobile Inflators

TR4/TR6

Mobile Inflation System (Nitrogen)

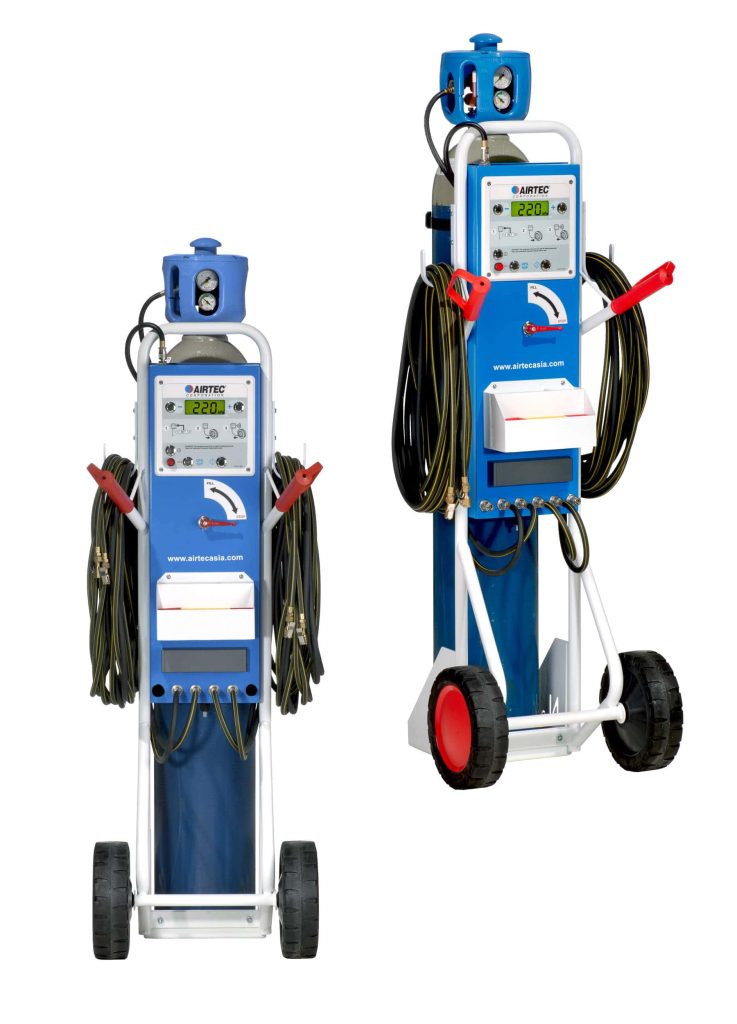

TR6 Mobile Inflation System Nitrogen

The TR4/TR6 offers a portable standalone solution for Nitrogen filling of tyres. The rugged mobile design system enables ease of use in motor racing pits, workshops, fleet control, tyre stores, lube shops and auto dealerships.

Using an industry standard bottle as a source or direct from Nitrogen generator, it can inflate up to 4 or 6 tyres simultaneously. The battery life is extended by an automatic power off function. In typical use, the unit will only have to be recharged every few days as high capacity NiMH batteries are used.

The 89TR6 is supplied with 4x8m hoses with clip-on closed chuck. The integrated accessory box provides storage compartments for chucks and other components like valve cores and caps.

  • Automatic Purging Program (N2P)
  • Adjustable Over Pressure Settings (OPS)
  • Power saving auto power off
  • Weatherproof
  • Suits standard Nitrogen bottle / Direct Nitrogen supply from generator
Technical Specifications
Construction Galvanised Steel Frame, powder coated
Power requirements 12V DC External Battery included
100-240V AC 50/60Hz Smart Charger included
Units of measurement psi / kPa / bar / kg/cm²
Operating range 5-145psi / 35-1000kPa / 0.3-10.0bar / 0.4-10.2kg/cm²
Accuracy +/- 0.5% FS
