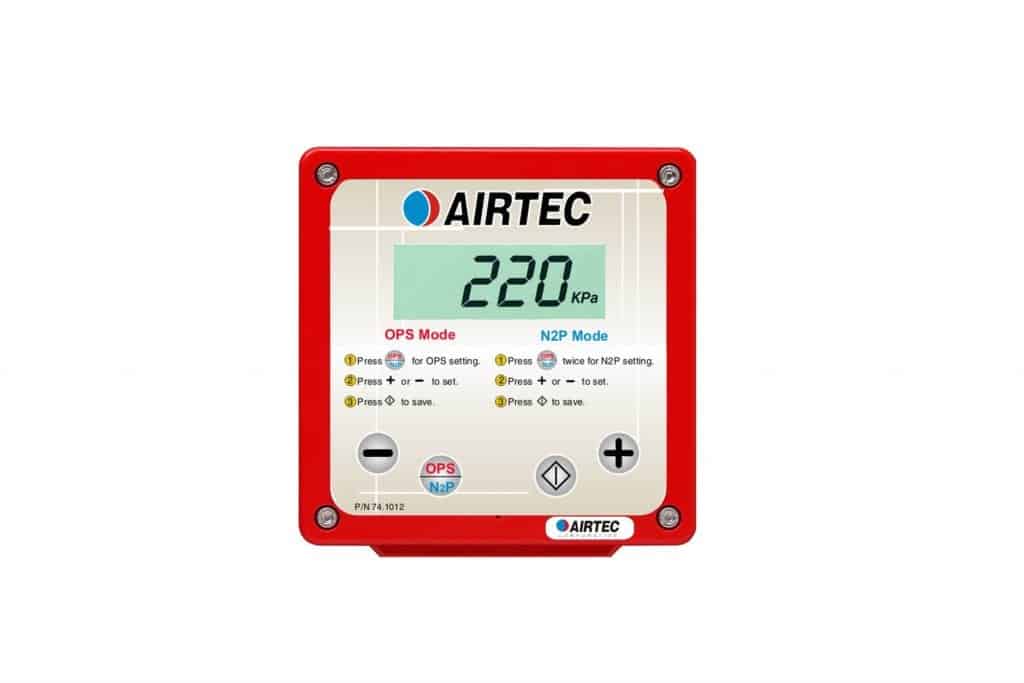

MXA

Compact Tyre Inflator

The light and compact enclosure makes it an ideal alternative compared to mechanical gauges, on a tyre changing machine.

  • Safe, accurate and easy to use
  • Easy mounting onto any tyre changing machine
  • High impact resistant enclosure
  • Supplied with 2m hose kit
Technical Specifications
Construction High impact polycarbonate enclosure (IP40)
Dimension 155 W x 155 H x 90 D mm
Power requirements 220V-240VAC (optional 12VDC or 100~120VAC)
Units of measurement psi / kPa / bar / kg/cm²
Operating range 5-145 psi / 35-1000 kPa / 0.3-10.0 bar / 0.4-10.2 kg/cm²
Accuracy +/- 0.5% FS
Download Brochure

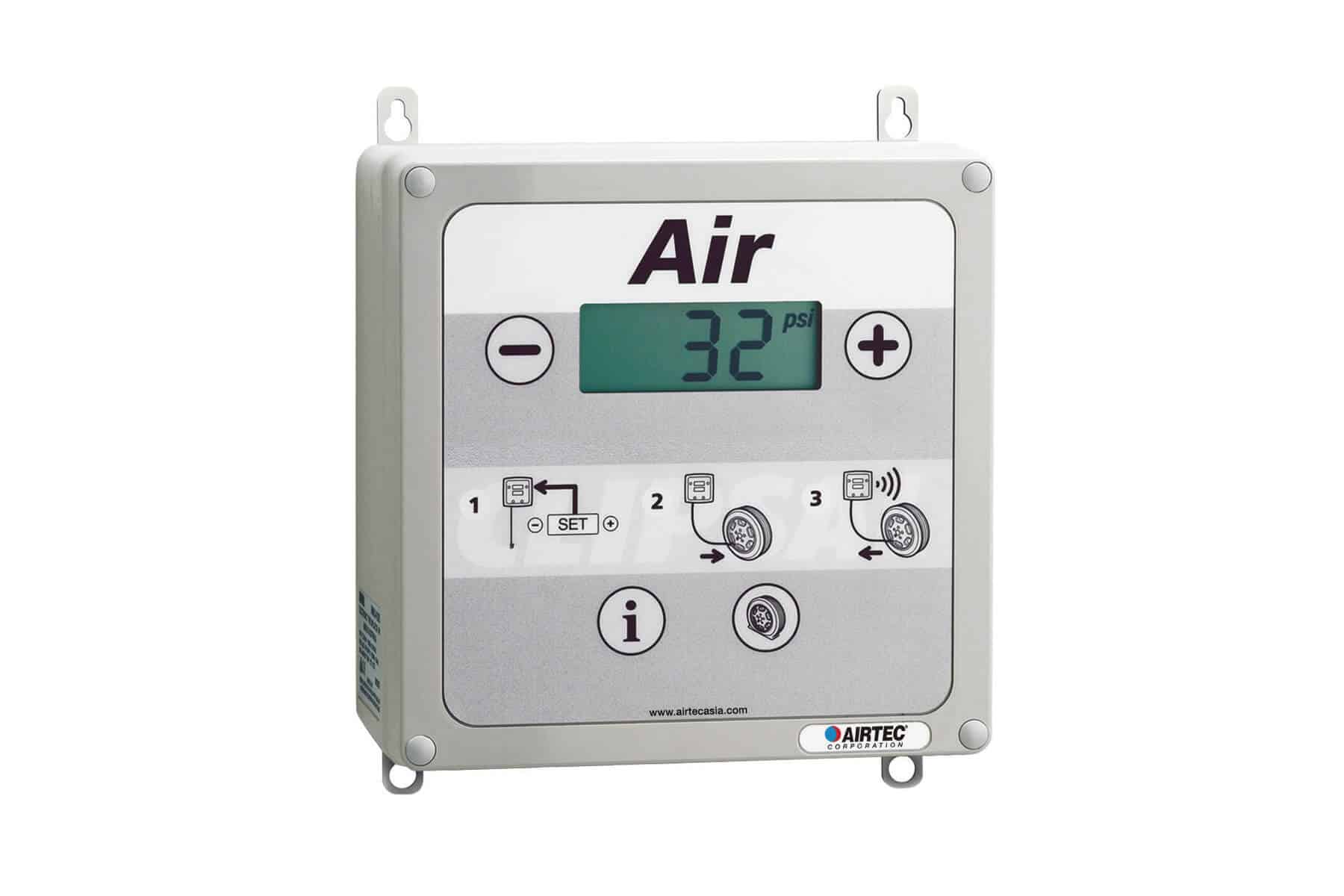

MDA

General Purpose Inflator

The MDA is designed for use in vehicle workshops and service centres. Suitable for all sizes of pneumatic tyres including trolleys, bicycles, cars and trucks.

  • Safe, accurate and easy to use
  • Easy to install
  • High impact resistant enclosure
  • Supplied with 10m hose kit
Technical Specifications
Construction High impact polycarbonate enclosure (IP66)
Dimension 220 W x 220 H x 100 D mm
Power requirements 220V-240VAC (optional 12VDC or 100~120VAC)
Units of measurement psi / kPa / bar / kg/cm²
Operating range 5-145 psi / 35-1000 kPa / 0.3-10.0 bar / 0.4-10.2 kg/cm²
Accuracy +/- 0.5% FS
Download Brochure

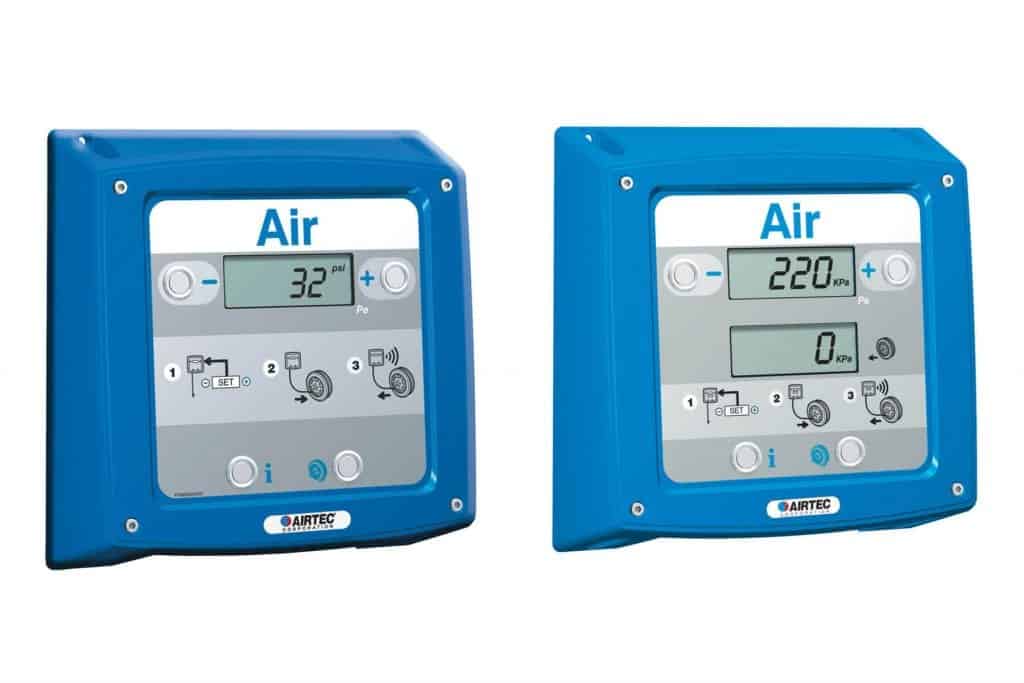

XDA/XDD

Heavy Duty Inflators

XDA is a heavy duty automatic digital tyre inflator suitable for a wide range of tyre inflation applications including service centres and petroleum forecourts. The XDD is a dual display tyre inflator. The top display shows the set pressure and the bottom display shows the actual tyre pressure during inflation.

  • Fast and accurate digital inflation up to 145 psi / 10 bar
  • Supplied with 10m hose kit
  • Rugged and durable IP66 rated diecast aluminium enclosure
  • Stainless steel switches (piezo switches as an option)
Technical Specifications
Construction Diecast aluminium wall / surface mount enclosure (IP66)
Dimension 269 W x 285 H x 106 D mm
Power requirements 220V-240VAC (optional 12VDC or 100~120VAC)
Units of measurement psi / kPa / bar / kg/cm²
Operating range 5-145 psi / 35-1000 kPa / 0.3-10.0 bar / 0.4-10.2 kg/cm²
Accuracy +/- 0.5% FS
Download Brochure

XDB/XDE

High Flow Inflators

The XDB Automatic Tyre Inflator incorporates a high flow ½” valve capable of delivering in excess of 4,000 litres/min (141 cfm) at a maximum of 10 bar / 145 psi pressure. The heavy duty, weatherproof and vandal resistant enclosure makes it ideal choice for any indoor or outdoor application which requires a high flow rate. Used with a 4-way manifold kit, XDB is able to inflate multiple tyres simultaneously, maximising inflation productivity. It is available in a dual display model, XDE.

  • High flow and high pressure inflation up to 145 psi / 10 bar
  • Rugged and durable IP66 rated diecast aluminium enclosure
  • Suitable for use with standard or large bore valves and core extraction tools
Technical Specifications
Construction Diecast aluminium wall enclosure (IP66)
Dimension 269 W x 285 H x 106 D mm
Power requirements 220V-240VAC (optional 12VDC or 100~120VAC)
Units of measurement psi / kPa / bar / kg/cm²
Operating range 5-145 psi / 35-1000 kPa / 0.3-10.0 bar / 0.4-10.2 kg/cm²
Accuracy +/- 0.5% FS
Download Brochure
